Android JetPack - Scheduling Tasks with WorkManager

-

Introduction:

WorkManager is one of the Android JetPack component. It is specifically designed for scheduling and managing background tasks. If the app is running, task will be executed in a new thread. Otherwise, WorkManager automatically chooses an appropriate way to do so. It can be AlarmManager, JobScheduler or Firebase JobDispatcher, depends on device's API level and its dependencies.

WorkManager Basics:

  • Worker
  • WorkRequest
  • WorkManager
  • WorkInfo

(i) Worker:

It specifies what task need to be performed.


class SampleWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    override fun doWork(): ListenableWorker.Result {
        //do the work here
        return ListenableWorker.Result.SUCCESS
    }
}

(ii) WorkRequest:

It represents which Worker should perform the task. Also we can specify any constraints/circumstances, based on which the task should be performed. Constraints can be of NetworkType, charging status, battery status, etc.

Two kinds of WorkRequest are there:

    (a) OneTimeWorkRequest - Non-repeating work request.


val requestBuilder = OneTimeWorkRequest.Builder(SampleWorker::class.java).build()

    (b) PeriodicWorkRequest - WorkRequest that repeats periodically.


val requestBuilder = PeriodicWorkRequest.Builder(SampleWorker::class.java, 24, TimeUnit.HOURS)

(iii) WorkManager:

It enqueues and manages the work requests.


WorkManager.getInstance().enqueue(requestBuilder)

We can also enqueue WorkRequest as unique, so that the same WorkRequest will not be assigned again and again.

val workTag = "workTag"
WorkManager.getInstance().beginUniqueWork(workTag, ExistingWorkPolicy.REPLACE, requestBuilder).enqueue()

(iv) WorkInfo:

It contains information about a particular task. We can get the WorkInfo of every WorkRequest, by observing LiveData.


 WorkManager.getInstance().getStatusByIdLiveData(requestBuilder.id).observe(this@DataActivity, android.arch.lifecycle.Observer { workerStatus ->
                if (workerStatus != null && workerStatus.state.isFinished) {
                    Toast.makeText(this@DataActivity, workerStatus.outputData.getString(Constants.EXTRA_OUTPUT_MESSAGE), Toast.LENGTH_SHORT).show()
                }

            })

You can find the Project on Github.

Implementation:

Let's first add WorkManager in our app-level gradle.

 implementation "android.arch.work:work-runtime-ktx:1.0.0-alpha10"

build.gradle

apply plugin: 'com.android.application'

apply plugin: 'kotlin-android'

apply plugin: 'kotlin-android-extensions'

apply plugin: 'kotlin-kapt'


android {
    compileSdkVersion 28
    defaultConfig {
        applicationId "com.yamikrish.app.workmanagerdemo"
        minSdkVersion 15
        targetSdkVersion 28
        versionCode 1
        versionName "1.0"
        testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
// Temporary fix until alpha10
    packagingOptions {
        exclude 'META-INF/proguard/androidx-annotations.pro'
    }

}

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation"org.jetbrains.kotlin:kotlin-stdlib-jdk7:$kotlin_version"
    implementation 'com.android.support:appcompat-v7:28.0.0'
    implementation 'com.android.support.constraint:constraint-layout:1.1.3'
    implementation "android.arch.work:work-runtime-ktx:1.0.0-alpha10"
    implementation "androidx.lifecycle:lifecycle-livedata:2.0.0"
    kapt "androidx.lifecycle:lifecycle-compiler:2.0.0"


    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.2'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
}
Let's see about WorkManager in detail with example. So first, let's create an activity, where we can have no. of options to check each kind.

BaseActivity.kt

It have 4 buttons for showing SingleTask, PeriodicTask, ChainedTask and Constraints & Data Task.

import android.content.Intent
import android.os.Bundle
import android.support.v7.app.AppCompatActivity
import android.view.View
import com.yamikrish.app.workmanagerdemo.R
import com.yamikrish.app.workmanagerdemo.activity.ChainTaskActivity
import com.yamikrish.app.workmanagerdemo.activity.ConstraintsDataActivity
import com.yamikrish.app.workmanagerdemo.activity.PeriodicTaskActivity
import com.yamikrish.app.workmanagerdemo.activity.SingleTaskActivity
import kotlinx.android.synthetic.main.activity_main.*

class BaseActivity : AppCompatActivity(), View.OnClickListener {
    override fun onClick(v: View?) {
        when (v?.id) {
            R.id.btn_periodic_task -> startActivity(Intent(this@BaseActivity, PeriodicTaskActivity::class.java))

            R.id.btn_single_task -> startActivity(Intent(this@BaseActivity, SingleTaskActivity::class.java))

            R.id.btn_recurring_task -> startActivity(Intent(this@BaseActivity, ChainTaskActivity::class.java))

            R.id.btn_constraints_data -> startActivity(Intent(this@BaseActivity, ConstraintsDataActivity::class.java))


        }
    }


    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        btn_periodic_task.setOnClickListener(this)
        btn_single_task.setOnClickListener(this)
        btn_recurring_task.setOnClickListener(this)
        btn_constraints_data.setOnClickListener(this)
    }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <Button
        android:id="@+id/btn_single_task"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/single_task"
        app:layout_constraintBottom_toTopOf="@+id/btn_periodic_task"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button
        android:id="@+id/btn_periodic_task"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/periodic_task"
        app:layout_constraintBottom_toTopOf="@+id/btn_recurring_task"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/btn_single_task" />


    <Button
        android:id="@+id/btn_recurring_task"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/chain_task"
        app:layout_constraintBottom_toTopOf="@+id/btn_constraints_data"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/btn_periodic_task" />


    <Button
        android:id="@+id/btn_constraints_data"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/constraints"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/btn_recurring_task" />


</android.support.constraint.ConstraintLayout>



(i) Simple Work:

Lets begin with simple one ;) We can create a Worker, which will send a push-notification after starts. So, create an activity with one button to start the Worker. Once the button is clicked, we can enqueue the WorkRequest (sending pushnotification worker) to WorkManager.

We can also delay the start of the task with the help of setInitialDelay() method.

setInitialDelay(10, TimeUnit.MINUTES)

SingleTaskActivity.kt

import android.os.Bundle
import android.support.annotation.Nullable
import android.support.v7.app.AppCompatActivity
import androidx.work.OneTimeWorkRequest
import androidx.work.WorkManager
import com.yamikrish.app.workmanagerdemo.worker.SingleWorker
import com.yamikrish.app.workmanagerdemo.R
import kotlinx.android.synthetic.main.activity_start_task.*


class SingleTaskActivity : AppCompatActivity() {

    private lateinit var workManager: WorkManager

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        setContentView(R.layout.activity_start_task)

        supportActionBar?.apply {
            setHomeButtonEnabled(true)
            setDisplayHomeAsUpEnabled(true)
            title = getString(R.string.single_task)
        }

        workManager = WorkManager.getInstance()

        start_single_task.setOnClickListener {
            val requestBuilder = OneTimeWorkRequest.Builder(SingleWorker::class.java).build()
            workManager.enqueue(requestBuilder)
        }
    }

    override fun onSupportNavigateUp(): Boolean {
        finish()
        return super.onSupportNavigateUp()
    }

    override fun onBackPressed() {
        finish()
        super.onBackPressed()
    }
}

SingleWorker.kt

This Worker class is to create and send notifications in the app.

import android.R
import android.app.NotificationChannel
import android.app.NotificationManager
import android.content.Context
import android.support.v4.app.NotificationCompat
import androidx.work.ListenableWorker
import androidx.work.Worker
import androidx.work.WorkerParameters

class SingleWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {
    val mContext = context
    override fun doWork(): ListenableWorker.Result {
        sendNotification()
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_00"
        //If on Oreo then notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle("Single Worker")
                .setContentText("This notification is from Single Worker!!")
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(1, notification.build())
    }
}

activity_start_task.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    xmlns:app="http://schemas.android.com/apk/res-auto">

    <Button
        android:id="@+id/start_single_task"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/start"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintBottom_toBottomOf="parent"/>

</android.support.constraint.ConstraintLayout>





(ii) Periodic Tasks:

PeriodicTaskActivity.kt

Next, we will see about PeriodicWorker. PeriodicWorker can schedule a task to be performed, for every specified time. It can be of MINUTES, HOURS or DAY. Time should be minimum of 15 minutes.

Let's create a Worker to send notification every 15 mins.

import android.content.Context
import android.content.SharedPreferences
import android.support.v7.app.AppCompatActivity
import android.os.Bundle
import androidx.work.*
import com.yamikrish.app.workmanagerdemo.worker.periodicWorker.NotifyWorker
import kotlinx.android.synthetic.main.activity_periodic_notifier.*
import java.util.concurrent.TimeUnit
import com.yamikrish.app.workmanagerdemo.R
import com.yamikrish.app.workmanagerdemo.worker.periodicWorker.NotifyInitialWorker

class PeriodicTaskActivity : AppCompatActivity() {

    private lateinit var workManager: WorkManager
    private val workTag = "starterNotifiWork"

    private lateinit var prefs: SharedPreferences
    private lateinit var editor: SharedPreferences.Editor
    private val NOTIFICATION_STATUS = "notification_status"
    private lateinit var requestBuilder: OneTimeWorkRequest

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_periodic_notifier)

        supportActionBar?.apply {
            setHomeButtonEnabled(true)
            setDisplayHomeAsUpEnabled(true)
            title = getString(R.string.single_task)
        }

        prefs = getPreferences(Context.MODE_PRIVATE)
        editor = prefs.edit()

        workManager = WorkManager.getInstance()


        remindSwitch.isChecked = prefs.getBoolean(NOTIFICATION_STATUS, false)

        remindSwitch.setOnClickListener {
            if (remindSwitch.isChecked) {
                val requestBuilder = PeriodicWorkRequest.Builder(NotifyWorker::class.java, 15, TimeUnit.MINUTES)
                workManager.enqueueUniquePeriodicWork(workTag, ExistingPeriodicWorkPolicy.REPLACE, requestBuilder.build())
            } else {
                workManager.cancelUniqueWork(workTag)
            }
            editor.putBoolean(NOTIFICATION_STATUS, remindSwitch.isChecked)
            editor.apply()
        }

    override fun onSupportNavigateUp(): Boolean {
        finish()
        return super.onSupportNavigateUp()
    }

    override fun onBackPressed() {
        finish()
        super.onBackPressed()
    }
}


NotifyWorker.kt


import android.util.Log
import androidx.work.Worker
import android.support.v4.app.NotificationCompat
import android.app.NotificationManager
import android.app.NotificationChannel
import android.content.Context
import android.content.Context.NOTIFICATION_SERVICE
import android.R;
import androidx.work.ListenableWorker
import androidx.work.WorkerParameters
import android.support.annotation.NonNull


class NotifyWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    val mContext = context

    override fun doWork(): ListenableWorker.Result {
        sendNotification()
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_01"

        //If on Oreo then notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle("Timer Reminder")
                .setContentText("It's been 15 minutes!!!")
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(2, notification.build())
    }
}

The above works fine at scheduling notification every 15 mins, even when the app is not in foreground or background state, also after device restart.

But one issue I encountered is, we can't set initial delay for PeriodicRequest, so that the task is sending notification while starting itself. It's not the correct way of doing it, know? (What to do??!!!)

Let's use some magic.. Nah..! Logic!!.

First we can create a OneTimeRequest with intialDelay of 15 minutes, then in that worker's doWork(), we can schedule the periodic tasks to show notification. Problem solved!!

 PeriodicTaskActivity.kt

import android.content.Context
import android.content.SharedPreferences
import android.support.v7.app.AppCompatActivity
import android.os.Bundle
import androidx.work.*
import com.yamikrish.app.workmanagerdemo.worker.periodicWorker.NotifyWorker
import kotlinx.android.synthetic.main.activity_periodic_notifier.*
import java.util.concurrent.TimeUnit
import com.yamikrish.app.workmanagerdemo.R
import com.yamikrish.app.workmanagerdemo.worker.periodicWorker.NotifyInitialWorker

class PeriodicTaskActivity : AppCompatActivity() {

    private lateinit var workManager: WorkManager
    private val workTag = "starterNotifiWork"

    private lateinit var prefs: SharedPreferences
    private lateinit var editor: SharedPreferences.Editor
    private val NOTIFICATION_STATUS = "notification_status"
    private lateinit var requestBuilder: OneTimeWorkRequest

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_periodic_notifier)

        supportActionBar?.apply {
            setHomeButtonEnabled(true)
            setDisplayHomeAsUpEnabled(true)
            title = getString(R.string.single_task)
        }

        prefs = getPreferences(Context.MODE_PRIVATE)
        editor = prefs.edit()

        workManager = WorkManager.getInstance()


        remindSwitch.isChecked = prefs.getBoolean(NOTIFICATION_STATUS, false)

        remindSwitch.setOnClickListener {
            if (remindSwitch.isChecked) {
                requestBuilder = OneTimeWorkRequest.Builder(NotifyInitialWorker::class.java)
                        .setInitialDelay(1, TimeUnit.MINUTES)
                        .build()
                workManager.getStatusByIdLiveData(requestBuilder.id).observe(this@PeriodicTaskActivity, android.arch.lifecycle.Observer { workerStatus ->
                    if (workerStatus != null && workerStatus.state.isFinished) {
                        startNotifyWorker()
                    }

                })
                workManager.beginUniqueWork(workTag, ExistingWorkPolicy.REPLACE, requestBuilder).enqueue()
            } else {
                workManager.cancelAllWork()
            }
            editor.putBoolean(NOTIFICATION_STATUS, remindSwitch.isChecked)
            editor.apply()
        }

    }

    /** Schedule PeriodicWorkRequest
    private fun startNotifyWorker() {
        val requestBuilder = PeriodicWorkRequest.Builder(NotifyWorker::class.java, 15, TimeUnit.MINUTES)
        WorkManager.getInstance().enqueueUniquePeriodicWork(workTag, ExistingPeriodicWorkPolicy.REPLACE, requestBuilder.build())
    }

    override fun onSupportNavigateUp(): Boolean {
        finish()
        return super.onSupportNavigateUp()
    }

    override fun onBackPressed() {
        finish()
        super.onBackPressed()
    }
}


NotifyInitialWorker.kt


import android.content.Context
import androidx.work.*

class NotifyInitialWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    override fun doWork(): ListenableWorker.Result {
        return ListenableWorker.Result.SUCCESS
    }

}

activity_periodic_notifier.xml


<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".activity.PeriodicTaskActivity">

    <TextView
        android:id="@+id/infoText"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Remind me every 15 minutes"
        android:padding="10dp"
        android:textAppearance="@android:style/TextAppearance.Medium"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Switch
        android:id="@+id/remindSwitch"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text=""
        android:layout_margin="10dp"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

</android.support.constraint.ConstraintLayout>



(iii) Chained Tasks

WorkManager can also schedule series of task to be executed in serial or parallel. Lets create three workers to send notifications.

To enqueue it serially,

WorkManager.getInstance().beginWith(request1).then(request2).then(request3).enqueue()
To enqueue it parallelly,

WorkManager.getInstance().beginWith(request1).then(request2, request3).enqueue()
Here, we can setInitialDelay to workers to exactly find out how it works.

ChainTaskActivity.kt

import android.os.Bundle
import android.support.v7.app.AppCompatActivity
import androidx.work.OneTimeWorkRequest
import androidx.work.WorkManager
import com.yamikrish.app.workmanagerdemo.worker.chainWorker.FirstWorker
import com.yamikrish.app.workmanagerdemo.worker.chainWorker.SecondWorker
import com.yamikrish.app.workmanagerdemo.worker.chainWorker.ThirdWorker
import kotlinx.android.synthetic.main.activity_start_task.*
import com.yamikrish.app.workmanagerdemo.R
import java.util.concurrent.TimeUnit


class ChainTaskActivity : AppCompatActivity() {

    private lateinit var workManager: WorkManager

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        setContentView(R.layout.activity_start_task)

        supportActionBar?.apply {
            setHomeButtonEnabled(true)
            setDisplayHomeAsUpEnabled(true)
            title = getString(R.string.single_task)
        }

        workManager = WorkManager.getInstance()


        start_single_task.setOnClickListener {
            val request1 = OneTimeWorkRequest.Builder(FirstWorker::class.java).build()
            val request2 = OneTimeWorkRequest.Builder(SecondWorker::class.java).setInitialDelay(30, TimeUnit.SECONDS).build()
            val request3 = OneTimeWorkRequest.Builder(ThirdWorker::class.java).setInitialDelay(30, TimeUnit.SECONDS).build()

       workManager.beginWith(request1).then(request2).then(request3).enqueue()

        }
    }

    override fun onSupportNavigateUp(): Boolean {
        finish()
        return super.onSupportNavigateUp()
    }

    override fun onBackPressed() {
        finish()
        super.onBackPressed()
    }
}

We can also make requests run parrallelly, by queuing like below:
workManager.beginWith(request1).then(request2, request3).enqueue()

 FirstWorker.kt


import android.R
import android.app.NotificationChannel
import android.app.NotificationManager
import android.content.Context
import android.support.v4.app.NotificationCompat
import androidx.work.ListenableWorker
import androidx.work.Worker
import androidx.work.WorkerParameters

class FirstWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    val mContext = context

    override fun doWork(): ListenableWorker.Result {
        sendNotification()
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_02"

        //If on Oreo then notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle("WorkManager")
                .setContentText("Message from First Worker!!")
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(3, notification.build())
    }

}

SecondWorker.kt

import android.R
import android.app.NotificationChannel
import android.app.NotificationManager
import android.content.Context
import android.support.v4.app.NotificationCompat
import androidx.work.ListenableWorker
import androidx.work.Worker
import androidx.work.WorkerParameters

class SecondWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    val mContext = context

    override fun doWork(): ListenableWorker.Result {
        sendNotification()
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_03"

        //If on Oreo then notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle("WorkManager")
                .setContentText("Message from Second Worker!!")
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(4, notification.build())
    }

}

ThirdWorker.kt

import android.R
import android.app.NotificationChannel
import android.app.NotificationManager
import android.content.Context
import android.support.v4.app.NotificationCompat
import androidx.work.ListenableWorker
import androidx.work.Worker
import androidx.work.WorkerParameters


class ThirdWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    val mContext = context

    override fun doWork(): ListenableWorker.Result {
        sendNotification()
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_04"

        //If on Oreo then notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle("WorkManager")
                .setContentText("Message from Third Worker!!")
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(5, notification.build())
    }

}

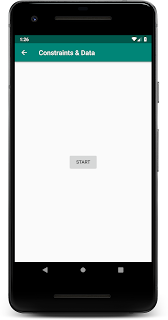

(iv) Constraints & Data

Now, let's see how to set constraints and how to send and receive data to/from Worker. We can easily set constraints to the Worker, by using,

val constraints = Constraints.Builder().setRequiresCharging(true).build()

We can send data to Worker and also can receive data from Worker.
To send data:

val data = Data.Builder()
                .putString(Constants.EXTRA_TITLE, "Title")
                .putString(Constants.EXTRA_MESSAGE, "Message sent!!")
                .build()



 val requestBuilder = OneTimeWorkRequest.Builder(MyWorker::class.java)
                    .setInputData(data)
                    .build()

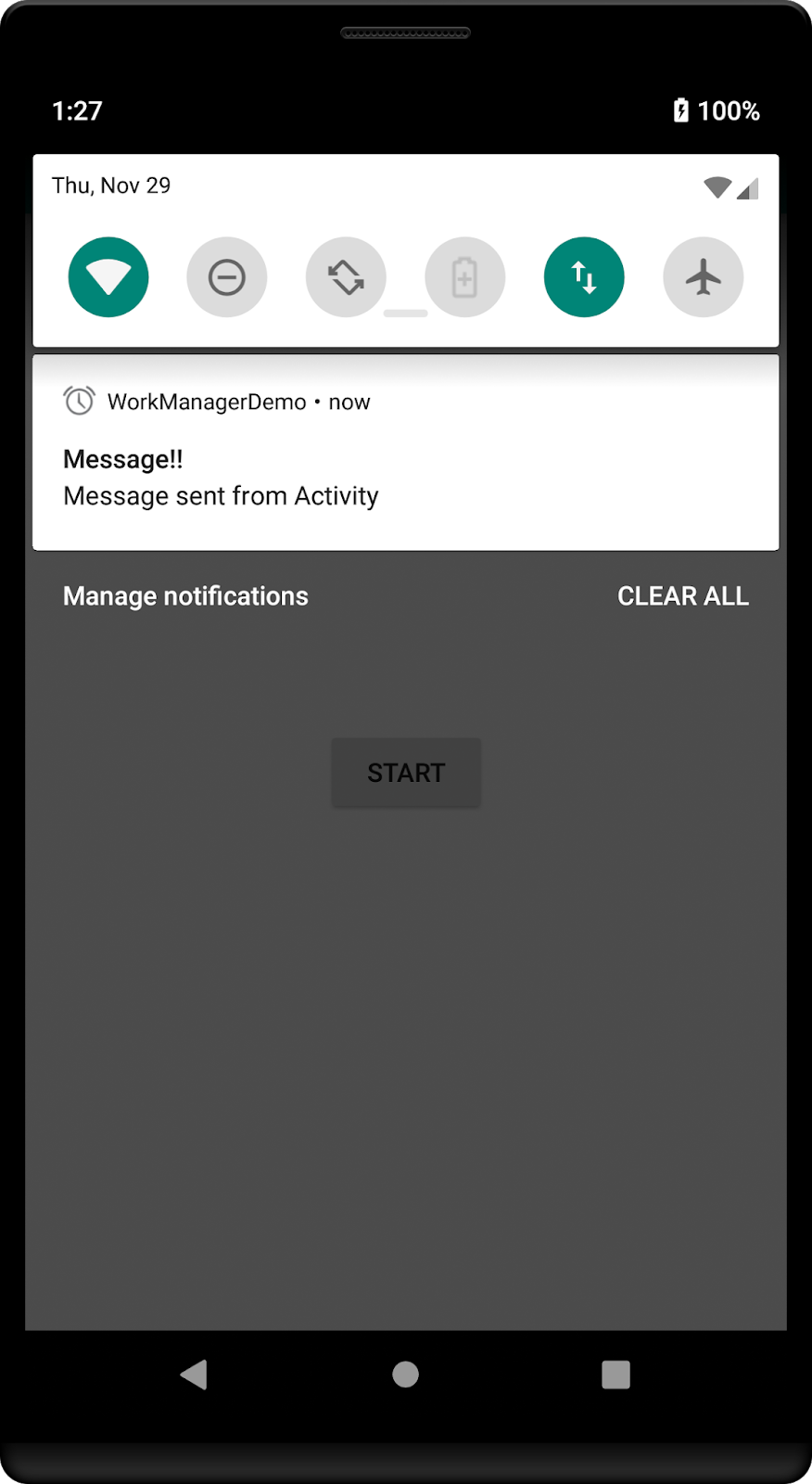

To receive data:

title = inputData.getString(Constants.EXTRA_TITLE)
message = inputData.getString(Constants.EXTRA_MESSAGE)

We can send OutputData from Worker to Activity/Fragment as well. We have to set OutputData before success return, ListenableWorker.Result.SUCCESS.

val output = Data.Builder()
                .putString(EXTRA_OUTPUT_MESSAGE, "Message from Worker!")
                .build()
outputData = output

ConstraintDataActivity.kt


In this class, let's send Data from Activity to Worker and send notification with that data. Once done, send OutputData back to the called Activity. To receive that output data, that Activity can listen by using LiveData.

import android.os.Bundle
import android.support.v7.app.AppCompatActivity
import android.widget.Toast
import androidx.work.Constraints
import androidx.work.Data
import androidx.work.OneTimeWorkRequest
import androidx.work.WorkManager
import com.yamikrish.app.workmanagerdemo.utils.Constants
import com.yamikrish.app.workmanagerdemo.worker.constraintDataWorker.ConstraintWorker
import kotlinx.android.synthetic.main.activity_start_task.*
import com.yamikrish.app.workmanagerdemo.R


class ConstraintsDataActivity : AppCompatActivity() {


    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_start_task)

        supportActionBar?.apply {
            setHomeButtonEnabled(true)
            setDisplayHomeAsUpEnabled(true)
            title = getString(R.string.single_task)
        }

        val constraints = Constraints.Builder().setRequiresCharging(true).build()

        val data = Data.Builder()
                .putString(Constants.EXTRA_TITLE, "Message!!")
                .putString(Constants.EXTRA_MESSAGE, "Message sent from Activity")
                .build()

        start_single_task.setOnClickListener {
            val requestBuilder = OneTimeWorkRequest.Builder(ConstraintWorker::class.java)
                    .setConstraints(constraints)
                    .setInputData(data)
                    .build()
            WorkManager.getInstance().enqueue(requestBuilder)

            WorkManager.getInstance().getStatusByIdLiveData(requestBuilder.id).observe(this@ConstraintsDataActivity, android.arch.lifecycle.Observer { workerStatus ->
                if (workerStatus != null && workerStatus.state.isFinished) {
                    Toast.makeText(this@ConstraintsDataActivity, workerStatus.outputData.getString(Constants.EXTRA_OUTPUT_MESSAGE), Toast.LENGTH_SHORT).show()
                }

            })
        }
    }

    override fun onSupportNavigateUp(): Boolean {
        finish()
        return super.onSupportNavigateUp()
    }

    override fun onBackPressed() {
        finish()
        super.onBackPressed()
    }

}

ConstraintWorker.kt


import android.R
import android.app.NotificationChannel
import android.app.NotificationManager
import android.content.Context
import android.support.v4.app.NotificationCompat
import androidx.work.Data
import androidx.work.ListenableWorker
import androidx.work.Worker
import androidx.work.WorkerParameters
import com.yamikrish.app.workmanagerdemo.utils.Constants
import com.yamikrish.app.workmanagerdemo.utils.Constants.Companion.EXTRA_OUTPUT_MESSAGE

class ConstraintWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    val mContext = context
    var title: String? = ""
    var message: String? = ""

    override fun doWork(): ListenableWorker.Result {
        title = inputData.getString(Constants.EXTRA_TITLE)
        message = inputData.getString(Constants.EXTRA_MESSAGE)

        sendNotification()

        val output = Data.Builder()
                .putString(EXTRA_OUTPUT_MESSAGE, "Message from ConstraintWorker!")
                .build()

        outputData = output
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_05"

        //If on Oreo then notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle(title)
                .setContentText(message)
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(6, notification.build())
    }

}

DataWorker.kt


import android.R
import android.app.NotificationChannel
import android.app.NotificationManager
import android.content.Context
import android.support.v4.app.NotificationCompat
import androidx.work.ListenableWorker
import androidx.work.Worker
import androidx.work.WorkerParameters

class DataWorker(context: Context, workerParams: WorkerParameters) : Worker(context, workerParams) {

    val mContext = context

    override fun doWork(): ListenableWorker.Result {
        sendNotification()
        return ListenableWorker.Result.SUCCESS
    }

    fun sendNotification() {
        val notificationManager = mContext.getSystemService(Context.NOTIFICATION_SERVICE) as NotificationManager
        val channelId = "WorkManager_06"

        //In Oreo, notification required a notification channel.
        if (android.os.Build.VERSION.SDK_INT >= android.os.Build.VERSION_CODES.O) {
            val channel = NotificationChannel(channelId, "WorkManager", NotificationManager.IMPORTANCE_DEFAULT)
            notificationManager.createNotificationChannel(channel)
        }

        val notification = NotificationCompat.Builder(mContext, channelId)
                .setContentTitle("WorkManager")
                .setContentText("Message from Data Worker!!")
                .setSmallIcon(R.drawable.ic_lock_idle_alarm)

        notificationManager.notify(7, notification.build())
    }

}

Constants.kt


class Constants {
    companion object {
        val EXTRA_TITLE = "TITLE_TEXT"
        val EXTRA_MESSAGE = "MESSAGE_TEXT"
        val EXTRA_OUTPUT_MESSAGE = "OUTPUT_TEXT"
    }
}



























That's it for WorkManager. Bubyeeee!!!
























































Comments











Post a Comment








































Popular posts from this blog









SOAP Client using ksoap2 in Android - Kotlin






-





















            Introduction:     SOAP stands for Simple Object Access Protocol. It is XML-based protocol that allows programs that run on different operating systems (like Windows, Linux, etc) to communicate using HTTP and XML.   Pros:    Security - SOAP provides its own security known as WS Security .  Platform Independent - SOAP web services can be written in any programming language and executed in any platform    Cons:     Slow - It uses XML format that must be parsed, to be read. It defines many standards to be followed while developing. So its slow and consumes more bandwidth and resource.  WSDL dependent - It uses WSDL mechanism and doesn't have any other mechanism to discover the service.    Things to know:    The following are the things we have to know before we proceed further:                         URL  - It is the URL of WSDL file.                         NAMESPACE  - It is targetNamespace in WSDL.                                             METHOD_NAME  - It is the met








Read more










Exploring Android Slices - JetPack






-





















  Introduction:   Slices are a new way of embedding our app's content in other surfaces, like Google Search and later in other places like Google Assistant. Slices are UI templates, which gives look and feel at home in whatever surface, they get hosts in. Also they are rich, interactive and dynamically updatable.    Before jumping into that, first migrate your project to AndroidX, (Android Studio 3.2 & above), by navigating as,                                           Refactor --> Migrate  to AndroidX         Setup:   build.gradle        implementation 'androidx.slice:slice-core:1.0.0'     implementation 'androidx.slice:slice-builders-ktx:1.0.0-alpha6'     implementation 'androidx.slice:slice-builders:1.0.0'      Creating Slice Provider:   Slice Provider is a component that let us display the slices we are creating, on outside our application. We can create the Slice Provider by navigating,                                         File -> New ->








Read more










Databinding in RecyclerView - Android - Kotlin






-





















 Hey Guyss!!   Already we have seen the basics of Databinding  and how to use it in previous  post .   Now let's see how to use Databinding  in RecyclerView . And Its gonna be a short post. ;)   You can find the Project in GitHub .   Prerequisite:  build.gradle   First, we have enable dataBinding in app-level build.gradle                             android {                                      dataBinding {                                              enabled = true                                      }                             }   Next, we have add the following plugin.                                 apply plugin: 'kotlin-kapt'    Next, we have to include dependency for databinding, (Not needed, if using Android Studio 3.2 or above, since its already bundled)                               kapt "com.android.databinding:compiler:3.2.0-alpha10"      Implementation:    We can directly bind the data to RecyclerView's Adapter layout. So, let's design the








Read more










Stripe Integration in Android - Kotlin






-





















           Stripe is one of the simplest payment gateway to be used. It enables us to process payments in minutes. Let's see how to integrate Stripe in Android using Kotlin.    Operational Flow:                   1. App should provide order details to Stripe server and the order total will be returned to App.              2. Then the user will enter the payment/card details. That will be sent to Stripe server and the result of the request will be sent back to the App.    Create Stripe Account:   (a) Go to  https://dashboard.stripe.com/register  and enter all your details and create account.          (b) Click API in side tab. Make sure that the Account is in Test mode. And make a note of          Publishable Key and Secret Key for use.           Code:    build.gradle:     compile 'com.stripe:stripe-android:5.1.0'    Layout files:    main_layout.xml:    <?xml version="1.0" encoding="utf-8"?>   <android.support.constraint.ConstraintLayout xmlns:an








Read more










Braintree Integration in Android - Kotlin






-





















            Let’s learn how to integrate Braintree in Android app with Kotlin. Braintree is a subsidary of PayPal.  It focuses in helping businesses of all size and to help maximize business growth. Braintree accepts  the following payments:                                                            * Credit Cards                              * Venmo                             * Android Pay                             * Apple Pay                             * PayPal        Operation Flow:              1. App have to request token from the server.       2. Server have to generate a token using Braintree’s SDK and send that to the requested App.       3. With that Token, app should allow user to pay, which will be validated by Braintree’s server and              then the payment nonce will be received.       4. That received payment nonce and paid amount will be sent to our own server. There the             payment will be checked whether its successful or not and the response will be s








Read more










Exploring Android Navigation Architecture Component - MVVM - Kotlin






-





















            Navigation Architecture Component is released as a part of JetPack and androidx package. Its aim is to simplify the implementation of Navigation in our Android App. It defines a set of principles to build an in-app navigation with consistent and predictable user experience. Its main concept is to use single-activity architecture. It also has support for both Activity and Fragment.   Principle of Navigation:   The following are the principles of Navigation.    App should have fixed starting destination  A stack is used to represent the navigation state of app  The 'Up' button never exits the app  Up and Back are equivalent within your app's task  Deep linking to a destination or navigating to the same destination should yield the same stack    You can find the detailed explanation, here .   Components of Navigation:     (i) Navigation Graph - It's nothing but a map/blueprint of our in-app navigation. It has a list of all fragments and activities. We can also








Read more










Shimmer Layout like Facebook in Android - Kotlin






-





















         While loading data from API, we used to show boring loaders. But in Facebook's app, one loading screen will be displayed. That one looks interesting know. We can also do that shimmer effect in our Andorid App using Shimmer  library by Facebook. Let's start.    Implementation:   build.gradle   Include the following in app-level gradle file.      implementation 'com.facebook.shimmer:shimmer:0.1.0'      colors.xml    Include the following color in values -> colors.xml      <color  name= "placeholder_color" > #dddddd </color>       Design:    1. First we have to design placeholder  layout that is similar to your RecyclerView's adapter layout.   placeholder.xml    <?xml version="1.0" encoding="utf-8"?>  <android.support.constraint.ConstraintLayout  xmlns:android= "http://schemas.android.com/apk/res/android"      xmlns:app= "http://schemas.android.com/apk/res-auto"      android:layout_width








Read more










Map, Location update and AutoComplete Places - Kotlin






-





















         Let's see how to show current location in Maps and also show the location which is chosen from AutoComplete in Maps with the updated Google play services. That is, for location listening we gonna use   FusedLocationProviderClient and for autocomplete places, we gonna use, GeoDataClient with AutoCompletePrediction, i.e., no need to call places url from our end, Google Playservices will do that work for you. Okiee, Let's start now.   You can find the project in Github .   PreRequisite:  Navigate to  https://developers.google.com/maps/documentation/android-api/signup  and do as per the instructions to start.   Manifest:   Include your API key, which you got from previous step in AndroidManifest.xml              <meta-data             android:name= "com.google.android.geo.API_KEY"              android:value= "AIzXXXXXXXXXX_XXXXXXXXXXXXXX"  />     Gradle:  Include the following in app-level build 's dependencies.         implementation 'com








Read more










Firebase Storage - Upload Files - Kotlin






-





















            Let's see how to upload the file to Firebase storage and download the same. Its really easy to upload files to Storage and it supports any type of files.     Preparing Firebase Console:    (a) Go to https://console.firebase.google.com/             (b) Then click Add Project , a dialog will be prompted. Enter project name and choose country in it and click on Create Project .             (c) Click on Add Firebase to your Android App, another dialog will be prompted. In that, enter package name (SHA-1 and App Nickname are optional) and click Register App .                   (d) Then download google_services.json file, by clicking download button and put that file in app's folder.                    (e) After that click on Storage  on Side tab. Then click on Rules  in that page. Make changes as follows:                    Code:    project-level gradle:   Add google service in dependencies      buildscript {     ext.kotlin_version = ' 1.2 . 10'      repositories








Read more










RecyclerView  with different number of columns using SpanSizeLookup






-





















         We already know how to design RecyclerView. But how to create RecyclerView with different columns depending on its row? Like below image?       Yeah, we can do that, by using two different layouts with different viewType on Adapter. Another way is do some logic to do so. But, it's cumbersome. Luckily, we have another simple way to do that using SpanSizeLookUp . Let's see how to implement that in this post.   Implementation:   build.gradle   Include the following in app-level gradle file.       implementation  'com.android.support:recyclerview-v7:27.0.2'    implementation  'com.android.support.constraint:constraint-layout:1.1.0-beta5'     recycler.xml    <?xml version= "1.0"  encoding= "utf-8" ?> <android.support.constraint.ConstraintLayout xmlns:android= "http://schemas.android.com/apk/res/android"      android:layout_width= "match_parent"      android:layout_height= "match_parent"      xmlns:ap








Read more
